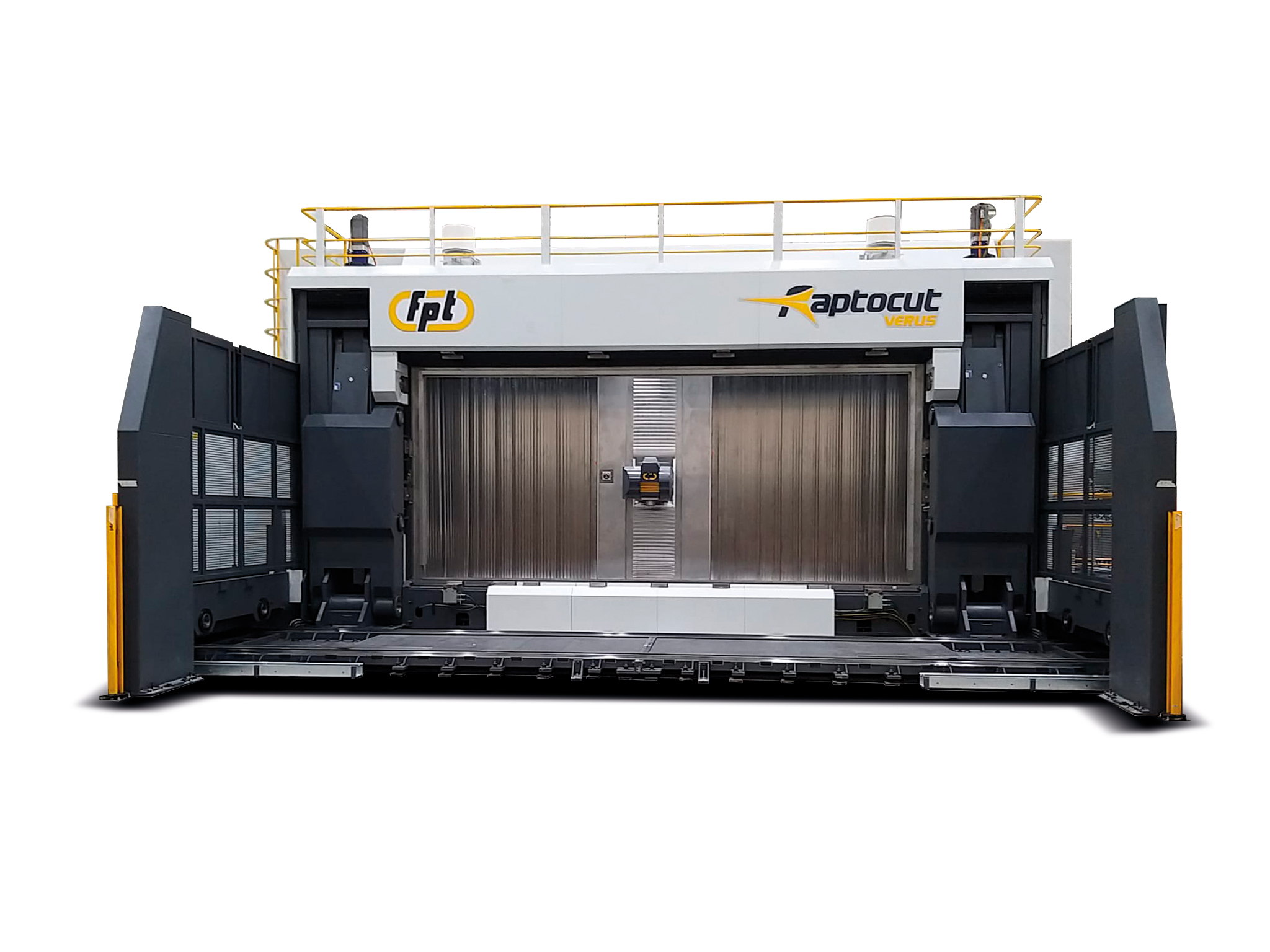

Raptocut
- Extreme productivity: High-frequency electrospindle with 28,000 rpm ensures fast and efficient machining of aluminum and light alloys.

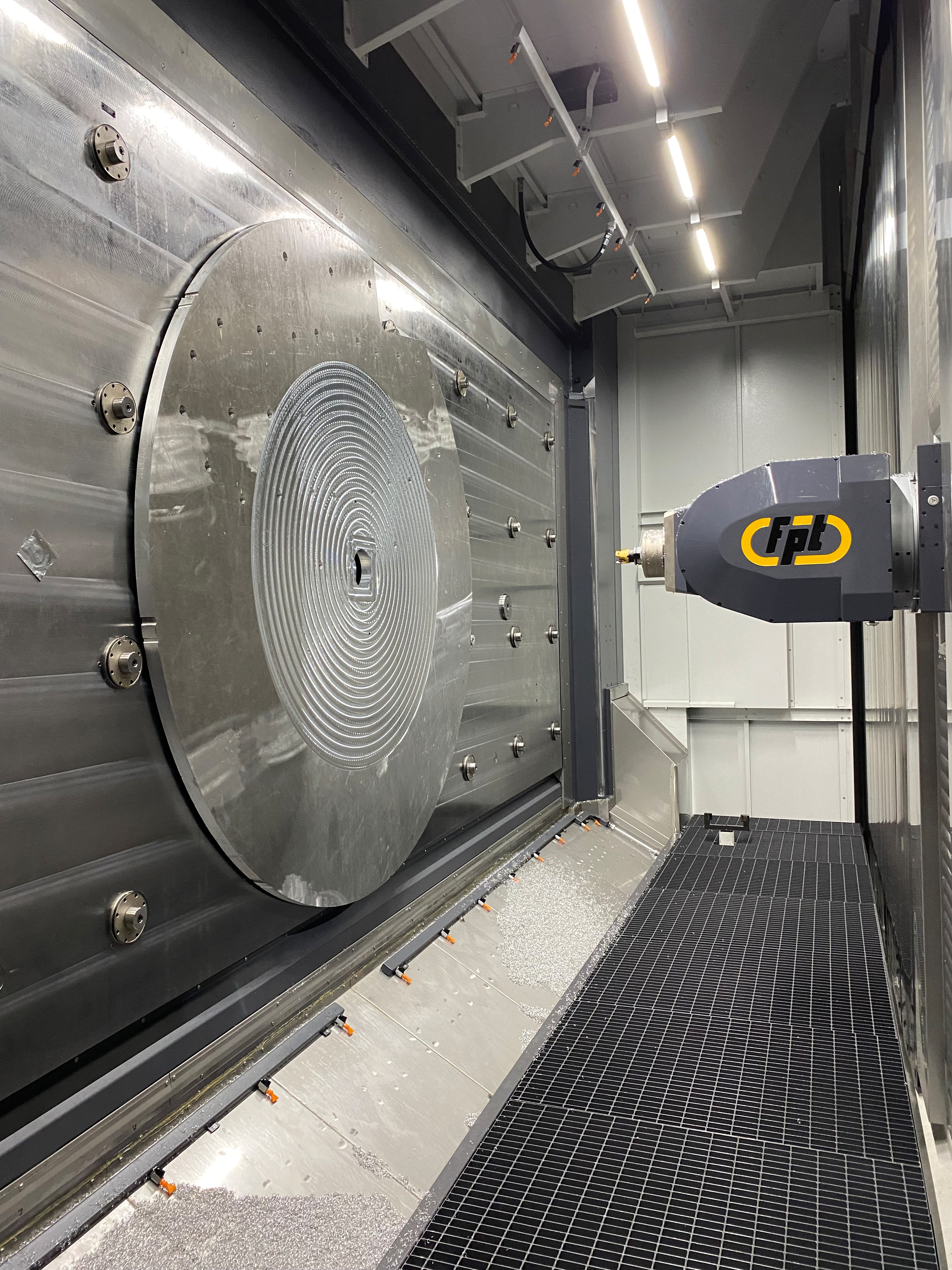

- Full 5-axis capability: Continuous fork head design with endless C-axis and ±120° A-axis travel allows flexibility for complex part geometries.
- Robust and precise: Spheroidal cast-iron head structure with dual torque motors ensures stability, accuracy, and long-term reliability.
Highlights
- Travels - X Axis Travel distance (mm): 7000
- Travels - Y Axis Travel distance (mm): 1000
- Travels - Z Axis Travel distance (mm): 2500
Seriebeskrivelse
|

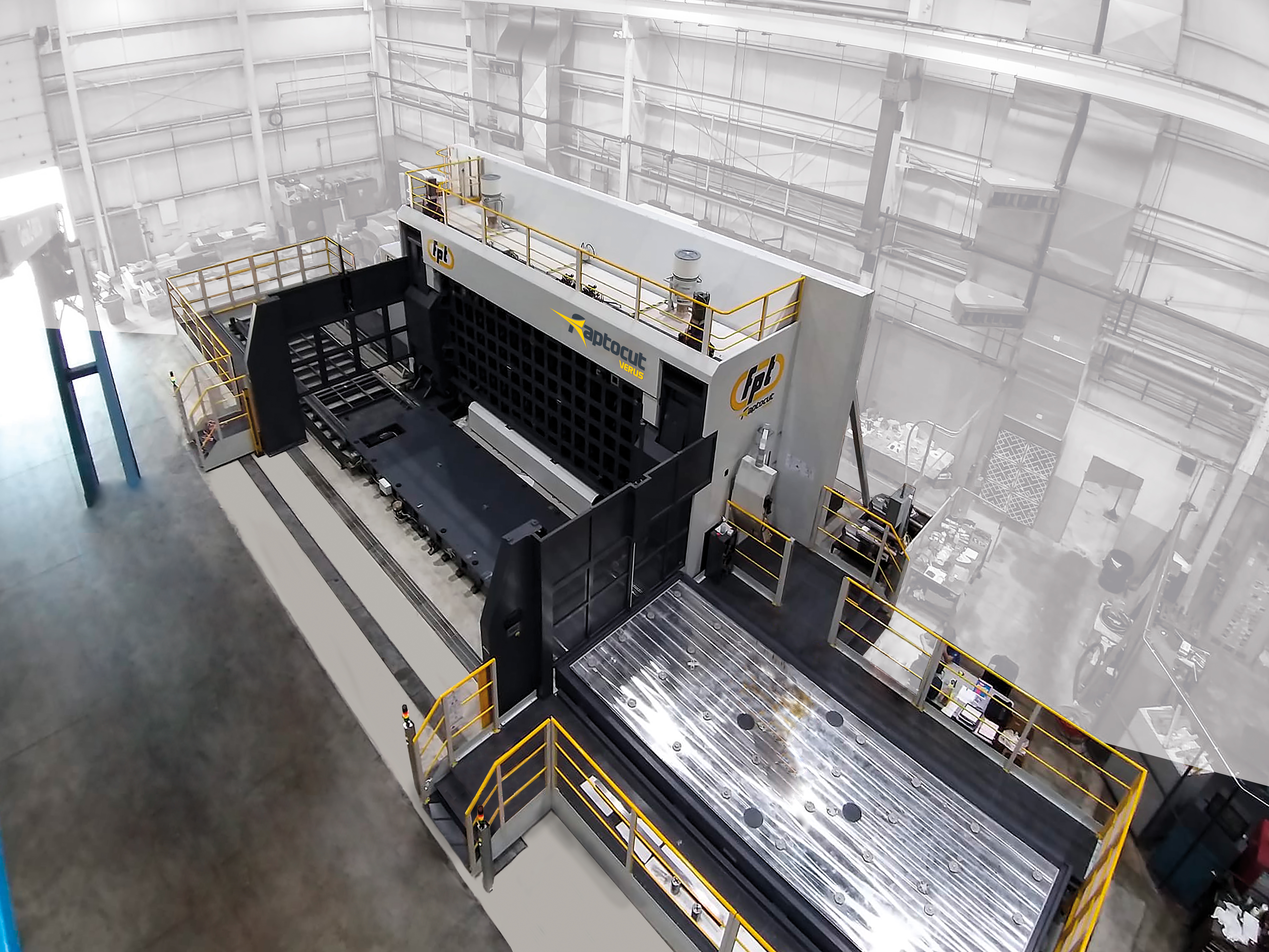

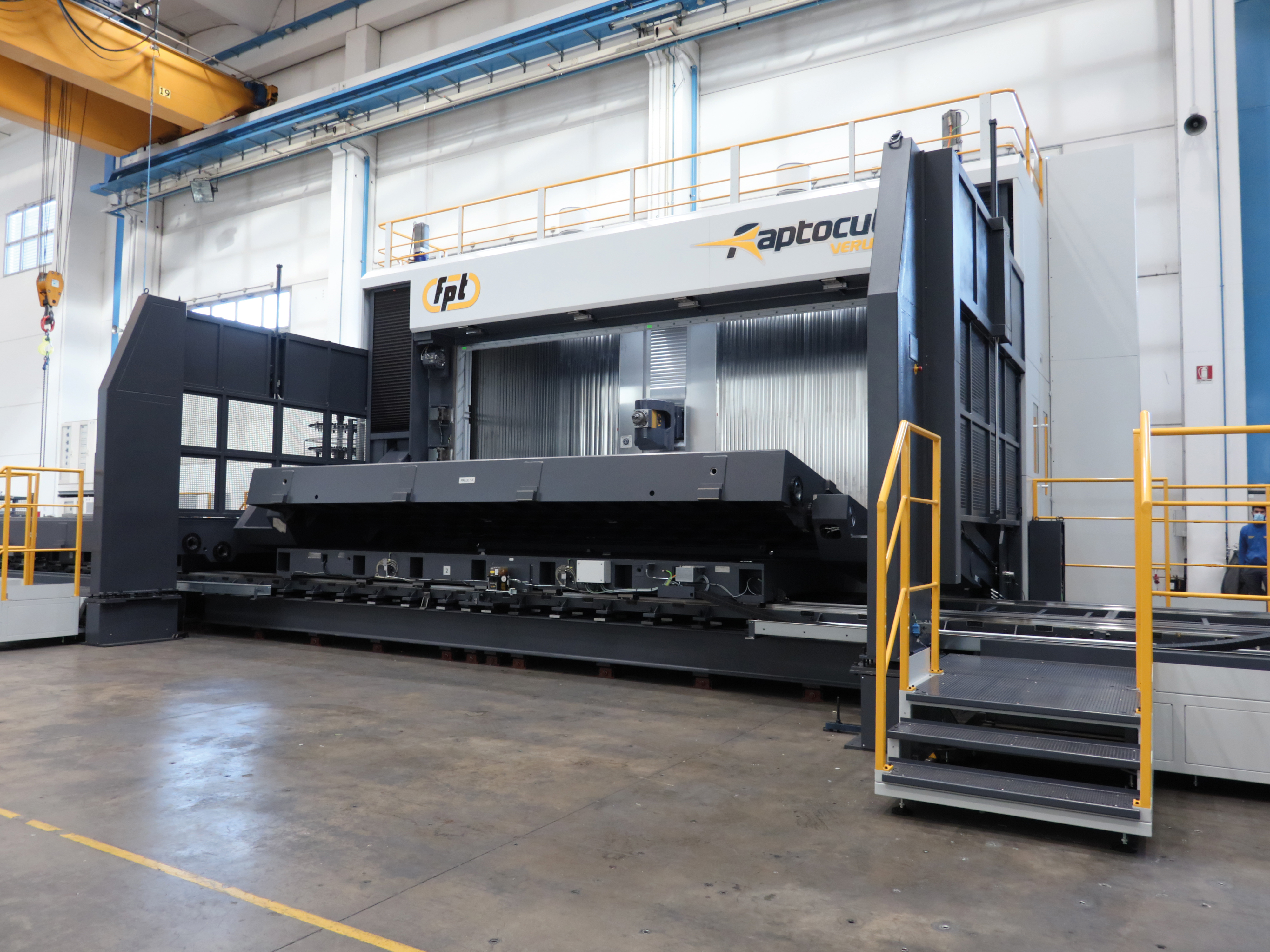

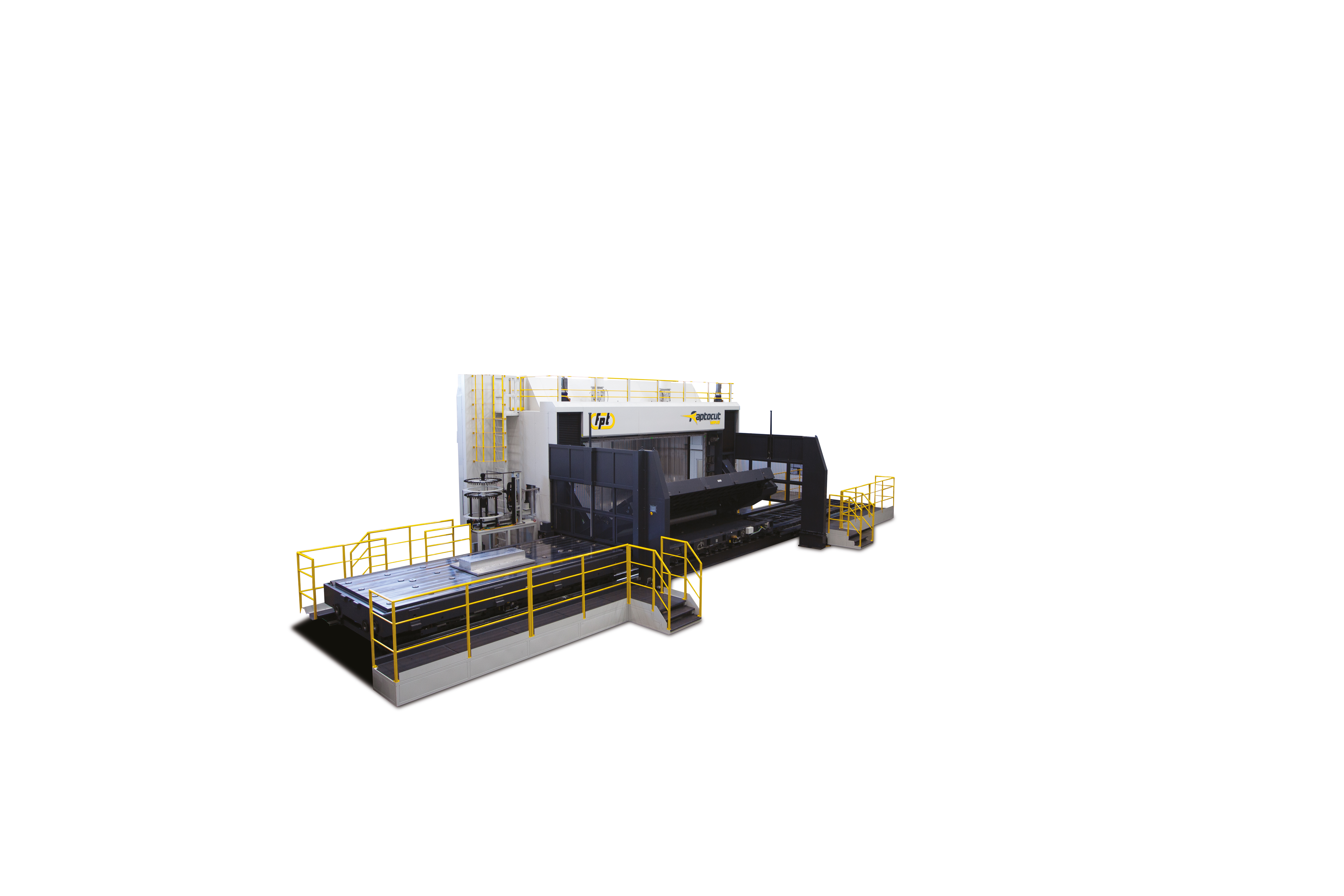

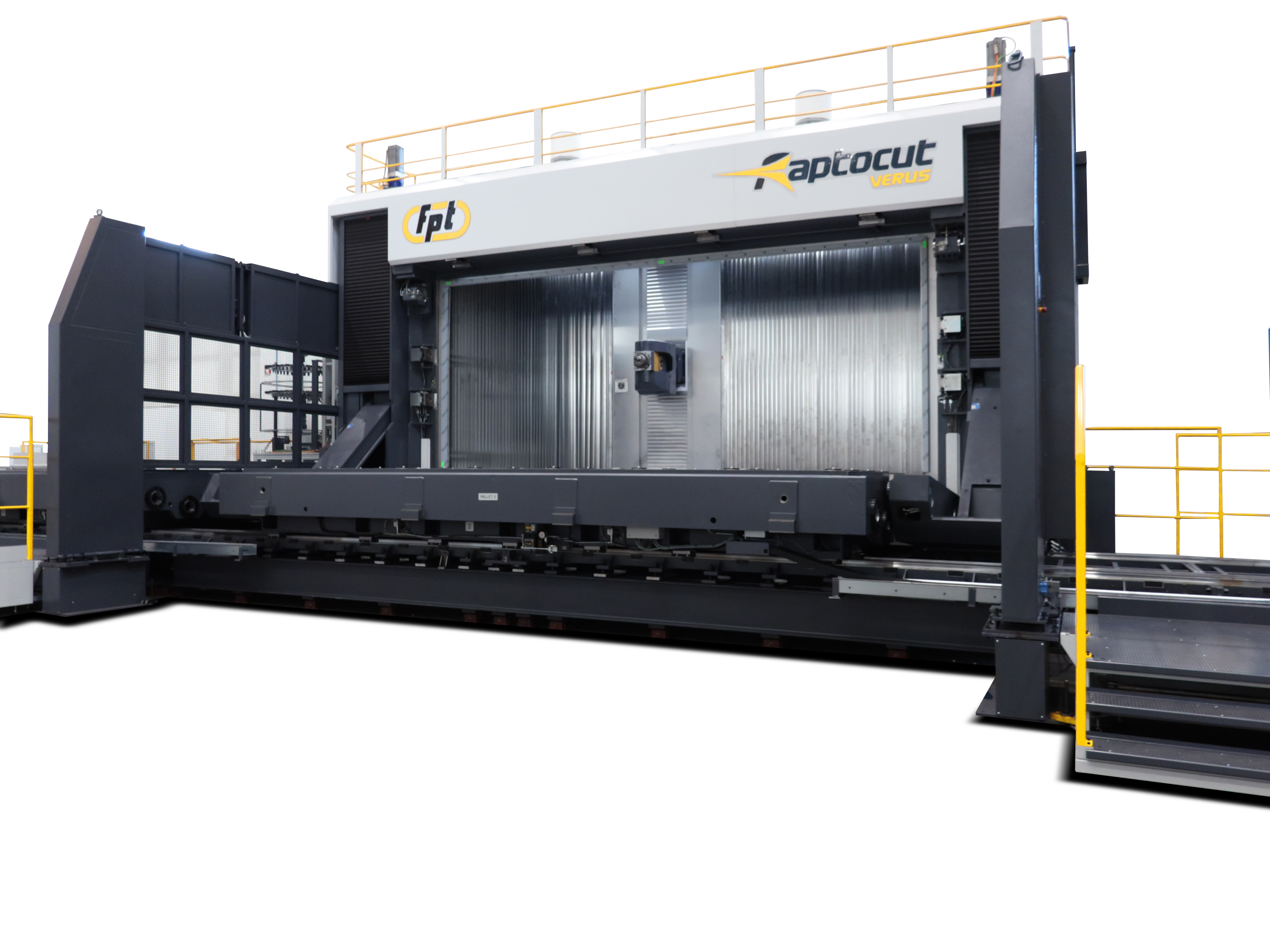

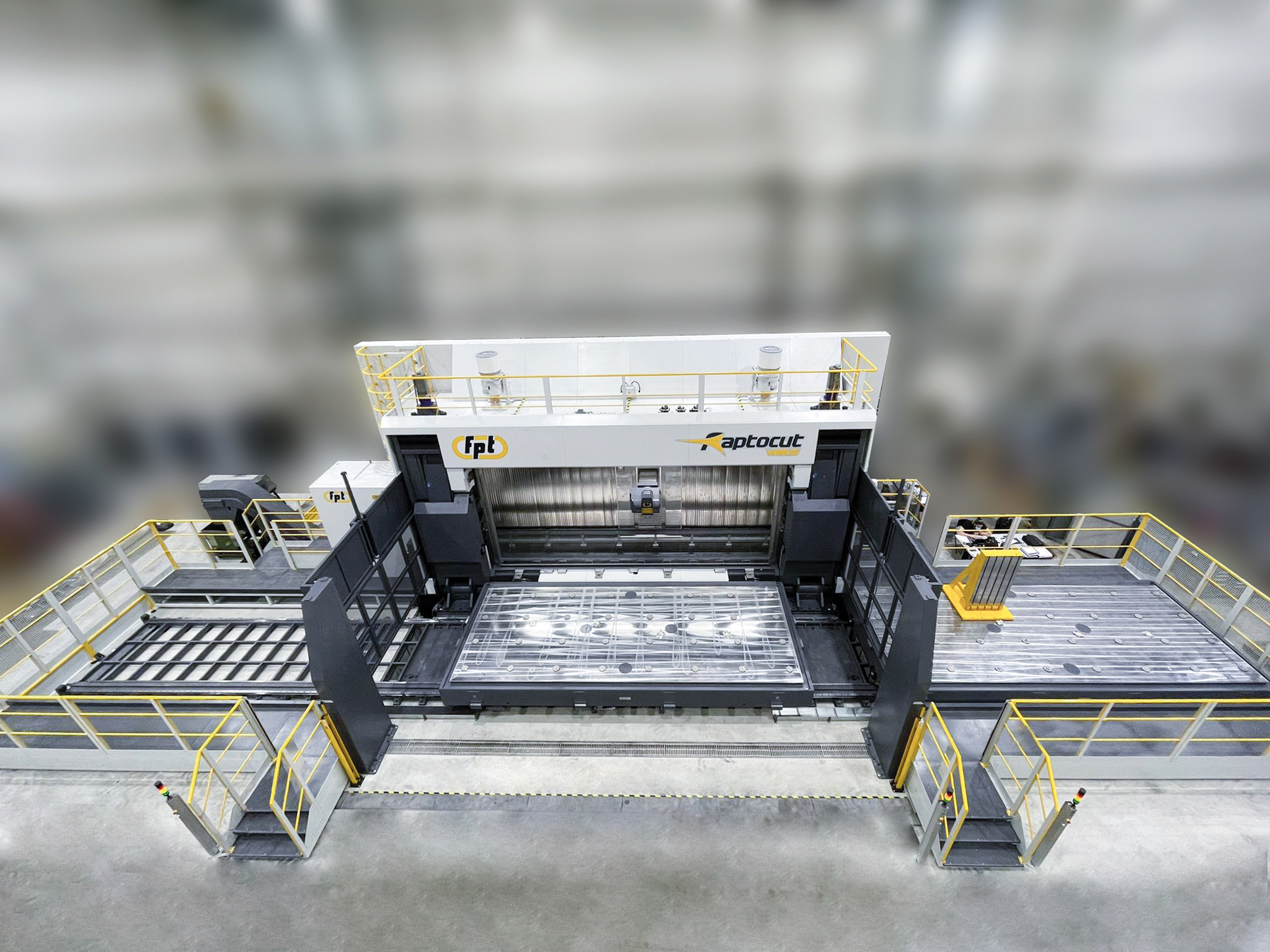

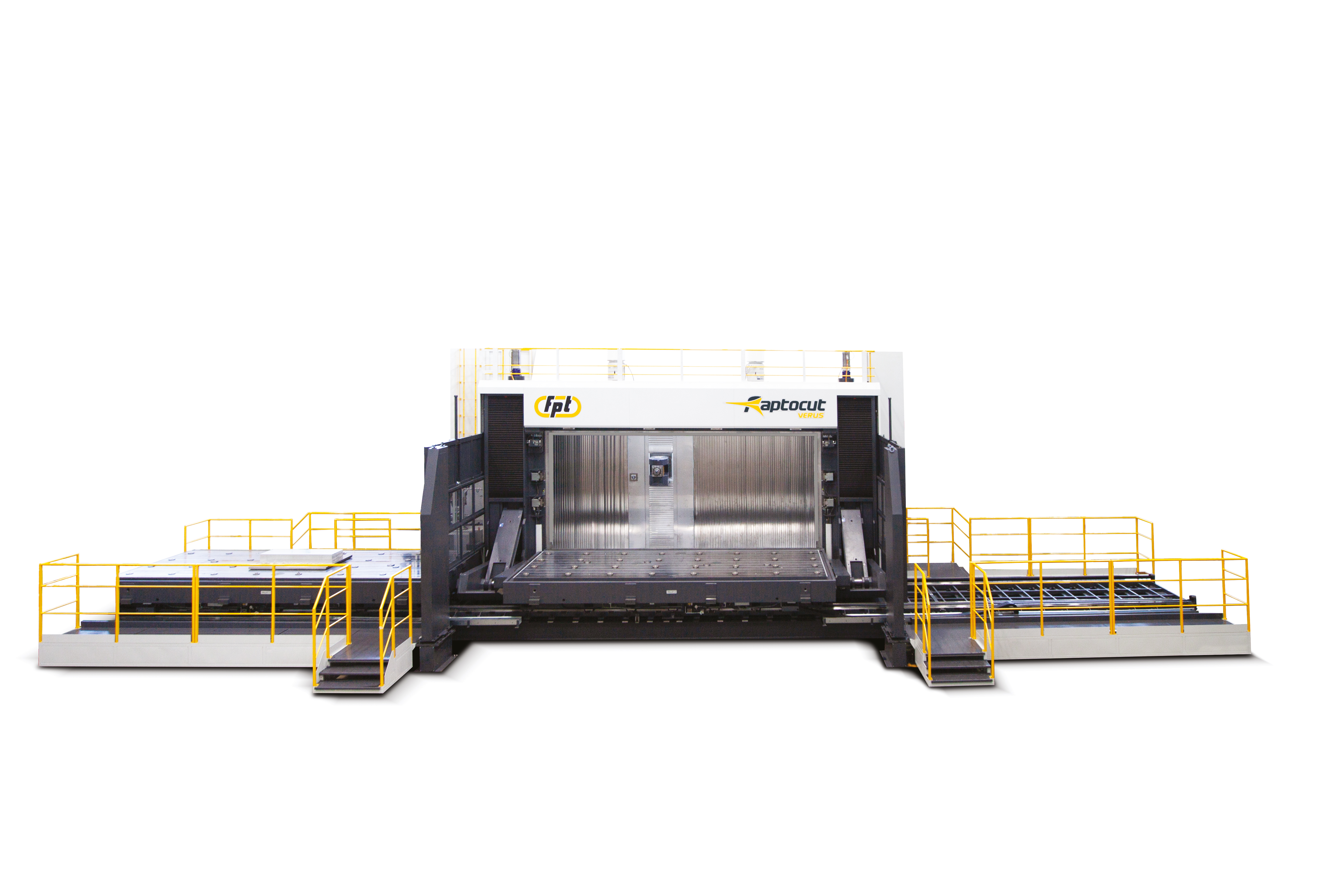

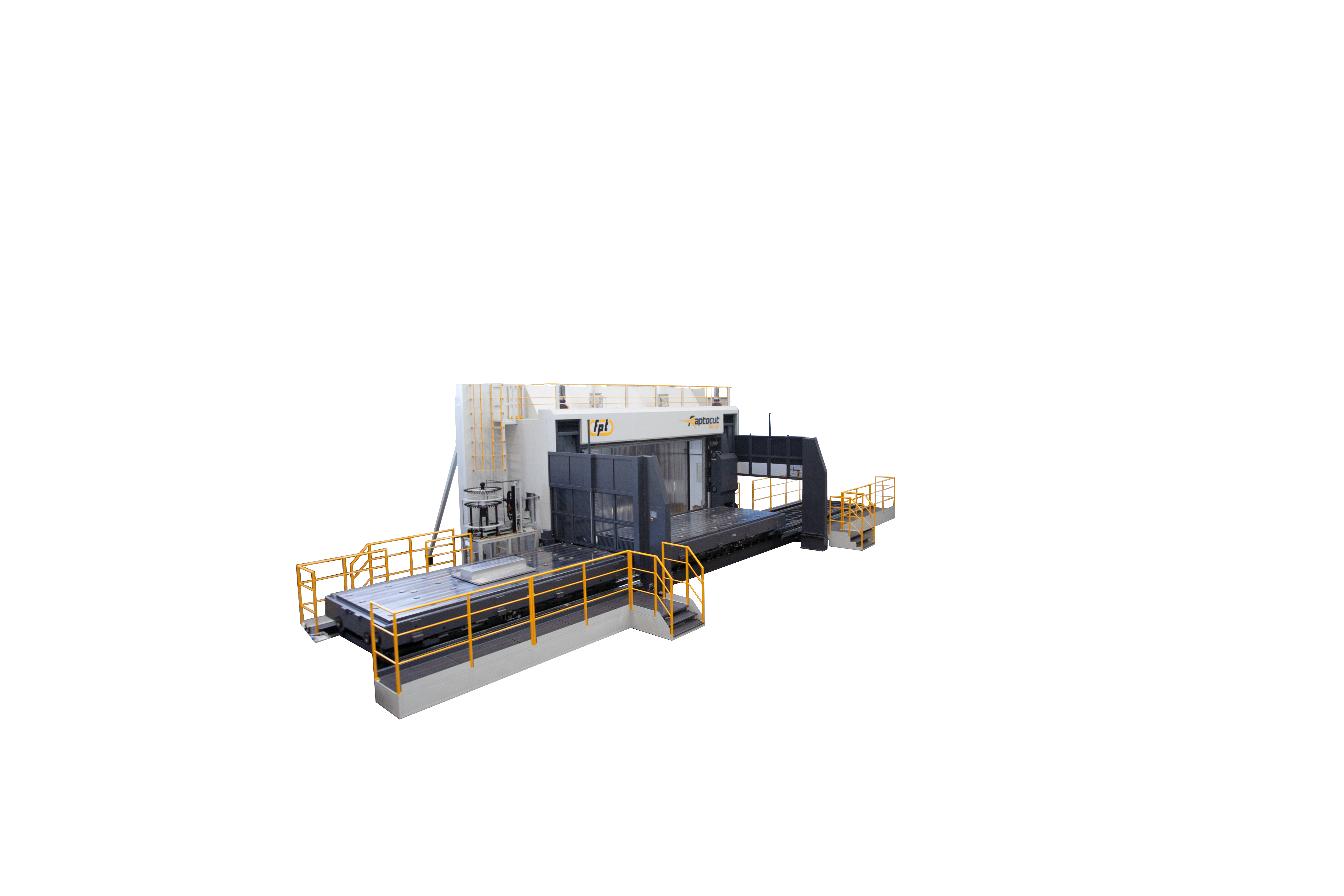

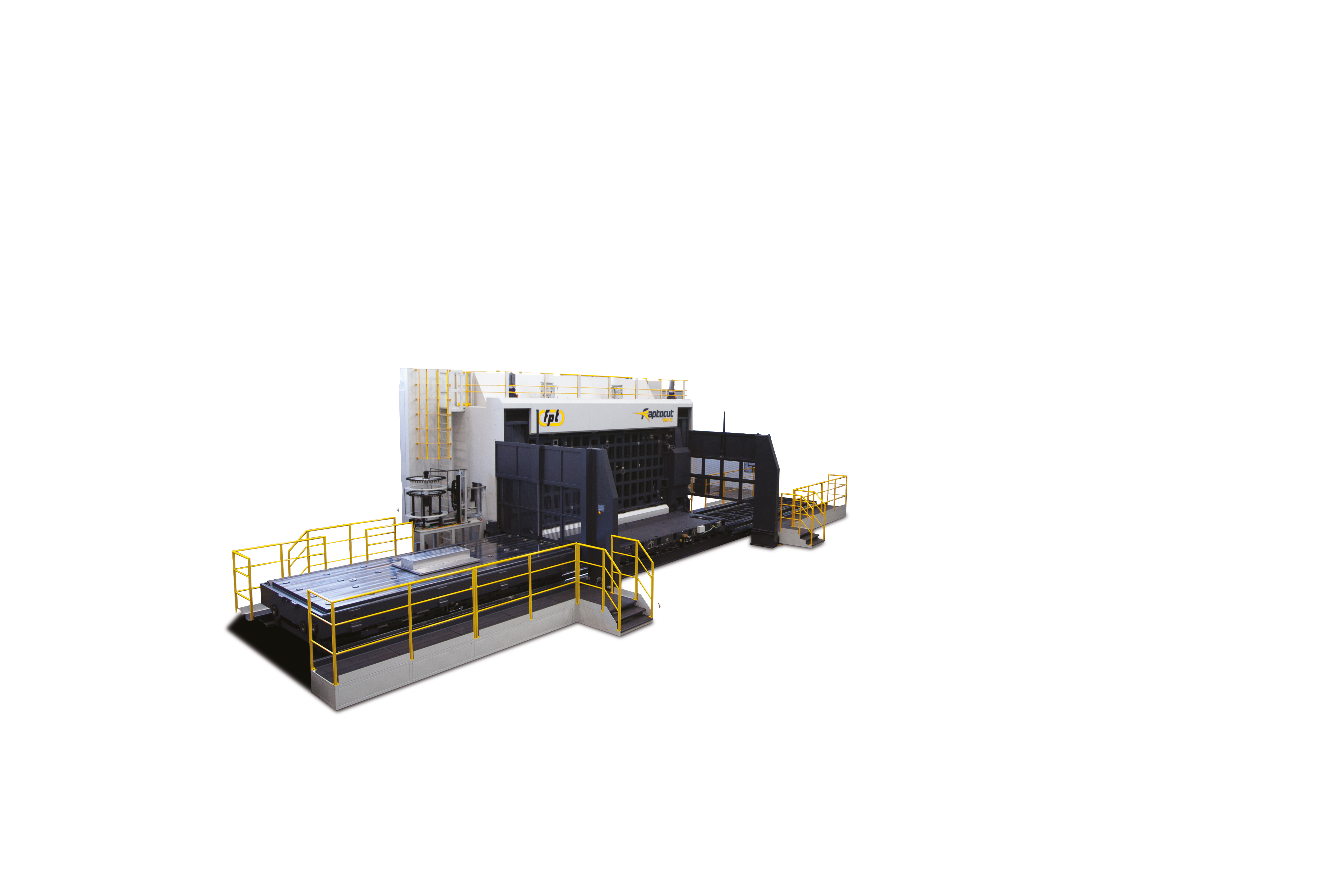

Raptocut is a high-speed horizontal milling machine designed for large-volume material removal and precision machining. Built around a robust cast-iron structure and equipped with advanced 5-axis fork head technology, Raptocut delivers the speed, rigidity, and accuracy needed for demanding industries. Its electrospindle reaches up to 28,000 rpm, delivering 80/100 kW of power and torque up to 57 Nm, making it ideal for aluminum and light alloy machining at high removal rates. Ideal For |
Specifikationer
Travels
| Travels - X Axis Travel distance (mm) | 7000 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 1000 |
| Travels - Z Axis Travel distance (mm) | 2500 |
| Travels - X Axis Rapid Traverse (m/min) | 50 |
| Travels - Y Axis Rapid Traverse (m/min) | 50 |
| Travels - Z Axis Rapid Traverse (m/min) | 50 |
Levering og installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
